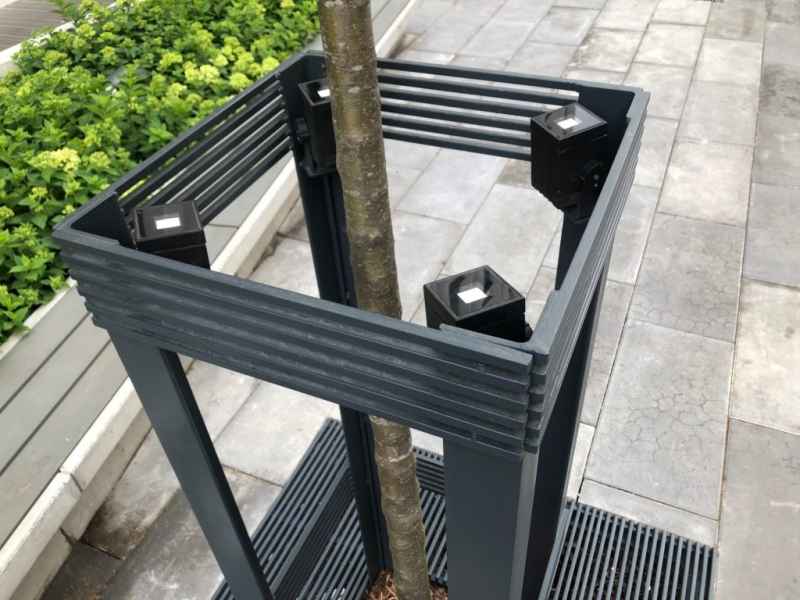

Ligman Lighting's Lador Cluster Column (model ULD-200XX).

Lador Cluster Column

Model#: ULD-200XX      Ratings:   IP66   CE   IK08   ETL

A range of square outdoor IP66 floodlight projectors that meets both aesthetic and functional applications. This luminaire is engineered to meet harsh outdoor environments, as well as being able to be used as a decorative indoor product. The Lador is provided with an integral driver and has accessories that include; linear spread lens, honeycomb louvres and anti-glare visors. This floodlight also has a unique aiming and locking system for precise mounting and beam aiming.The Lador product family consists of; floodlights, wall sconces, ceiling mounted squares and cluster column event poles. This luminaire is available with a natatorium rated coating.

Jump down to Spec Sheets

Other Fixtures in the Lador Design Family:

Click to view Ligman Lighting's Lador Ceiling (model ULD-800XX).

ULD-800XX

Lador Ceiling

Click to view Ligman Lighting's Lador Floodlight: Pedestal Mount (model ULD-50XXX).

ULD-50XXX

Lador Floodlight: Pedestal Mount

Click to view Ligman Lighting's Lador Floodlight: Yoke Mount (model ULD-500XX).

ULD-500XX

Lador Floodlight: Yoke Mount

Click to view Ligman Lighting's Lador Wall Light (model ULD-300XX).

ULD-300XX

Lador Wall Light

Spec Sheets and Downloads for Lador Cluster Column

Specification Sheets
Lador Floodlight - 4.7" Floodlight
Model No.
Watts
Light Output
Beam
Pole Height
ULD-20031
4x21
4x1975 lm
8°-17°-26°-65°-43°x11°
13'

ULD-20051
4x21
4x1975 lm
8°-17°-26°-65°-43°x11°
20'
ULD-20071
4x21
4x1975 lm
8°-17°-26°-65°-43°x11°
26'



Lador Floodlight - 5.7" Floodlight
Model No.
Watts
Light Output
Beam
Pole Height
ULD-20041
4x39
4x3568 lm
8°-17°-26°-65°-43°x11°
13'

ULD-20061
4x39
4x3568 lm
8°-17°-26°-65°-43°x11°
20'
ULD-20081
4x39
4x3568 lm
8°-17°-26°-65°-43°x11°
26'


For Static White Clusters, Please Click Here
