Ligman Lighting's Vancouver Light Column (model UVA-201XX).

Vancouver Light Column

Model#: UVA-201XX      Ratings:   IP65   IP66   CE   IK08   ETL   IDA

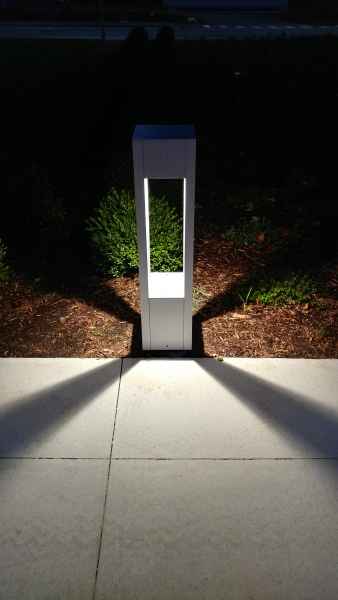

A stylish Dark Sky Compliant square high performance light column with downward light distribution using LED lamps. This light column offers optimal visual comfort through glare control by utilizing a controlled optics designed by Ligman. These columns have a square design providing a unique wide light distribution, offering an architecturally appealing clover leaf pattern on the paving. The internal sides of the supporting pillars are accented by light from the LED. The minimalistic shape provides distinctive lighting effects by night and decorative urban effect during the day. Suitable for pedestrian areas, precincts, building surrounds, shopping centers, squares and parks. The Vancouver Column comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with powercord and waterproof gland from the driver enclosure to the base of the column to ensure quick trouble-free installation. The Vancouver has a specially designed anchor bolt mounting base that is partially buried below ground level to provide a flush fixture finish with the surface, but maintains the rigidity that is required when installing light columns. This ensures that the anchor bolts are not seen and therefore eliminates the necessity for an anchor bolt cover. ( review installation instructions before installing the anchor bolts.) Custom column heights are available, please specify. Provided with anchor bolts (the root mount kit is an option and is an adder) Reduced custom wattages can be provided to suit customer requirements. (Specify total watt requirement per fixture) Designed to complement the Vancouver bollard. This product is provided complete with anchor bolts and laser cut steel bolt template.

Jump down to Spec Sheets

Other Fixtures in the Vancouver Design Family:

Click to view Ligman Lighting's Vancouver Wall (model UVA-300XX).

UVA-300XX

Vancouver Wall

Spec Sheets and Downloads for Vancouver Light Column

Specification Sheets





Vancouver RGBW

Model No.
Watts
Lumens
Height
Vancouver 16
1 - 4 Floodlights
9.4" Square

UVA-20111 - 1 Floodlight 2x33w 2x1158 lm 13.3'
UVA-20112 - 2 Floodlights  3x33w  3x1158 lm 14.5'
UVA-20113 - 3 Floodlights  4x33w  4x1158 lm  15.7'
UVA-20114 - 4 Floodlights 5x33w 5x1158 lm 17'
Vancouver 17
1 - 4 Floodlights
9.4" Square

UVA-20121 - 1 Floodlight 2x33w 2x1158 lm 13.3'
UVA-20122 - 2 Floodlights 3x33w 3x1158 lm 14.5'
UVA-20123 - 3 Floodlights 4x33w 4x1158 lm 15.7'
UVA-20124 - 4 Floodlights 5x33w 5x1158 lm 17'
Vancouver 18
1 - 4 Floodlights
9.4" Square

UVA-20131 - 1 Floodlight 2x33w 2x1158 lm 13.3'
UVA-20132 - 2 Floodlights 3x33w 3x1158 lm 14.5'
UVA-20133 - 3 Floodlights 4x33w 4x1158 lm 15.7'
UVA-20134 - 4 Floodlights 5x33w 5x1158 lm 17'
Vancouver 19
1 - 4 Floodlights
9.4" Square

UVA-20141 - 1 Floodlight 2x33w 2x1158 lm 13.3'
UVA-20142 - 2 Floodlights 3x33w 3x1158 lm 14.5'
UVA-20143 - 3 Floodlights 4x33w 4x1158 lm 15.7'
UVA-20144 - 4 Floodlights 5x33w 5x1158 lm 17'
Vancouver 20
9.4" Square

UVA-20151 33w 1158 lm 13.3'
Vancouver 21
9.4" Square

UVA-20161  33w 1158 lm 12.1'
Vancouver 22
9.4" Square

UVA-20171 33w 1158 lm 12.1'
Vancouver 23
9.4" Square

UVA-20181 33w 1158 lm 12.1'



For Static White Column, Please Click Here
